Linex Electro Template, Pen 0.35mm, Electric Wiring Diagrams, 155x155mm (DIN40717, ISO617, BS3939)
In stock
Only 7 left
SKU
LXG1289S
£15.06 £12.55
Electro Template 1289S

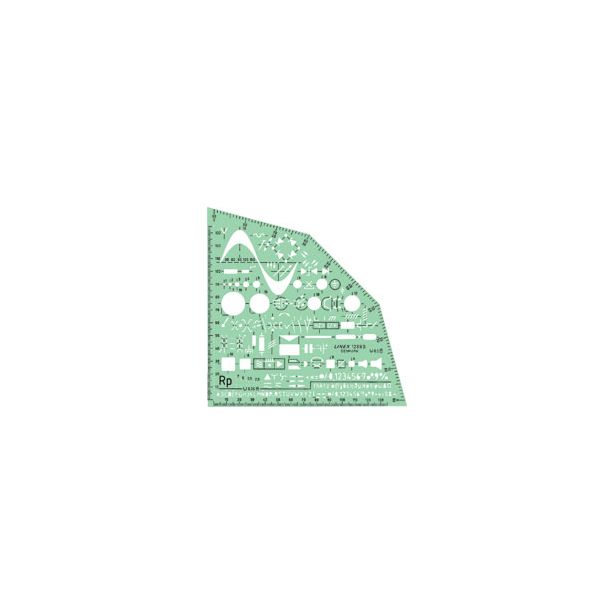

Including highly used symbols for electrical purposes, this template is amazingly useful for any electricians that could use a little help. Comes in an efficient compact size for easy usage and quick storage.
- This template includes highly used symbols and easily-combined symbol parts for electrical wiring diagrams DIN 40717, ISO 617 BS 3939.
- Comes with curves and a 3.5mm lettering stencil extended with Greek letters.
- Additionally includes numbers and arrowheads in 5mm sizes.
- General design aids as metric coordinate scales and protractor 0-90 and 90-0 degrees.
- Holes for guidelines and hatching.
- Ink bossed.
- Able to be used with pens 0.35/0.5mm.
- Size: 155x155mm.
Including highly used symbols for electrical purposes, this template is amazingly useful for any electricians that could use a little help. Comes in an efficient compact size for easy usage and quick storage.
